POST: Rank a Finished Run, Find the Keystone¶

POST reads a run after it finished and tells you which step to review first. It scores every step by how much of the rest of the run leans on it, then names the keystone: the one step that, if it went wrong, would have dragged the most of the run with it. When you have a failed run and a hundred steps, POST points at the step worth opening first.

You hand analyze_run a finished run and read the keystone off the report:

from auditable import analyze_run
from auditable.graph.adapters import tau_bench_prior_db_reads_v1

report = analyze_run(run, adapter=tau_bench_prior_db_reads_v1)
print(report.keystone.idx)   # the step the rest of the run rests on

The full runnable script is examples/example_post_rank_run.py; run it with python examples/example_post_rank_run.py (needs the graph extra). The POST Examples page walks the output.

The per-run score POST prints is a within-run ranking, not a benchmark number. The published benchmark evidence that the two graph layers carry real signal lives in GRADE, summarized next.

What the Graph Layers Predict (GRADE Evidence)¶

The POST ranking reads the typed two-layer graph: a dependency layer (what each step relied on) over an execution layer (control flow). GRADE (arXiv:2606.22741) measures each layer against labeled agent runs across six public corpora: tau-bench and tau2-bench (tool use); SWE-agent, SWE-Gym, and OpenHands (coding); and AgentRewardBench (web).

The dependency layer predicts whether a run will fail. On SWE-Gym it reaches ROC-AUC 0.805, +0.142 over the run-length baseline (0.663), with reliable lift on the three size-weak corpora (5 of 5 seeds). Under a leave-one-corpus-out transfer test, the dependency signal stays 0.551 to 0.662 above chance on all six corpora, while the run-length baseline inverts below 0.5 (0.468 on tau-bench, 0.350 on SWE-Gym).
The execution layer ranks steps toward the faulting step. On Who&When (126 failed runs), ranking by execution structure reaches Top-3 0.614, MRR 0.454, and Top-1 0.211, against a position prior at 0.516 / 0.407 / 0.159 and a random floor at 0.346 / 0.324 / 0.119.

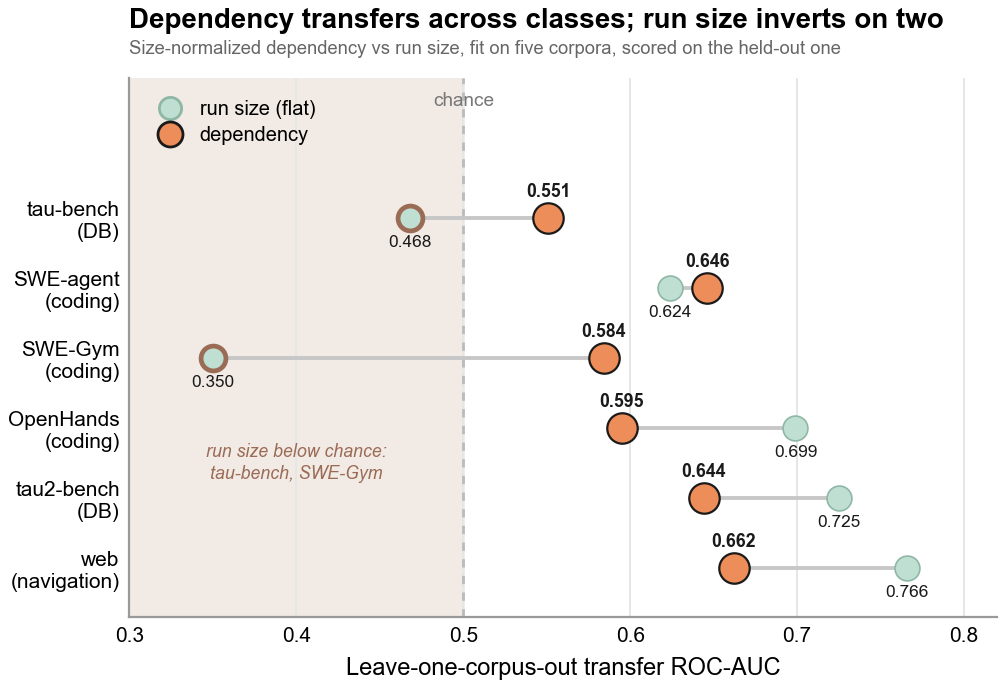

Leave-one-corpus-out transfer ROC-AUC: the size-normalized dependency signal clears chance on all six held-out agent corpora, while run size drops below chance on tau-bench and SWE-Gym

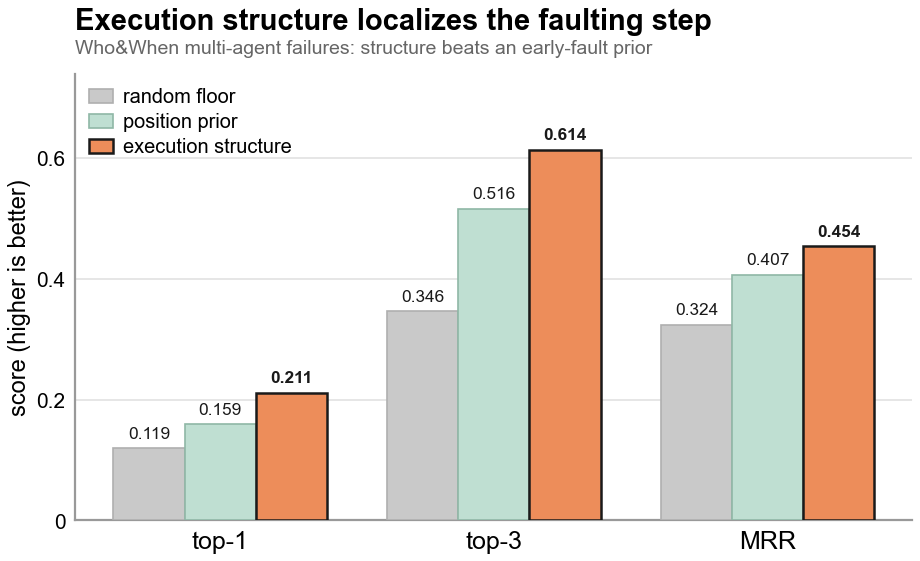

Step-level fault localization on Who and When: ranking steps by execution-graph structure beats an early-fault position prior on top-1, top-3, and MRR

These are GRADE's published benchmark results for the two layers. The POST per-run keystone signal below is the same structure applied to a single run, surfaced as an uncalibrated triage ranking rather than a calibrated probability.

The rest of this page is the reference for analyze_run, the AnalysisReport it returns, the no-score gates, and the caveats that travel with the score.

Reference¶

POST needs the graph extra (NetworkX).

`analyze_run`¶

from auditable import analyze_run
from auditable.graph.adapters import tau_bench_prior_db_reads_v1

report = analyze_run(messages, adapter=tau_bench_prior_db_reads_v1)
print(report)

analyze_run(source, *, adapter, ground=True) is a top-level export. The source is whatever the adapter consumes (a public-corpus trajectory, or a chain of auditable's own signed records). The adapter is any object satisfying the Adapter protocol. The call maps the source to typed steps, builds the SessionGraph, scores it structurally, grounds each step that states a model basis, and returns an AnalysisReport. Set ground=False to skip the (cheap, deterministic) grounding pass. See Architecture for the adapters and the typed graph.

The Ranked Structural Signal¶

The per-step score is the normalized transitive blast share: of the rest of the run, how much transitively depends on this step. It is computed as downstream_reach over the dependency DAG, normalized by the number of other steps. A step that many later steps rest on scores high, because a fault there would propagate widely. This is the keystone signal.

The score is an uncalibrated triage ranking, not a calibrated probability. It orders steps so the one most worth reviewing first comes first; it does not assert a likelihood that any step is wrong. Calibration would require labeled data and is not claimed here.

The Keystone¶

The keystone is the worst-blast step: the one that the most of the run transitively rests on. It is surfaced as AnalysisReport.keystone (a DecisionRisk row) with per_session carrying its blast share (the run-level risk). The report's rendered summary names it directly, for example "two consequential writes rest on this one read, so it ranks first to review."

The POST keystone is computed over the dependency DAG and is a distinct concept from the PRE execution keystone, which is a structural control-flow chokepoint over the handoff_to projection (see PRE Rules). The two are named separately in the code and must not be conflated.

Reading the `AnalysisReport`¶

The report carries the fields you read:

Field	What it holds
`state`	`scored`, `no_score:single_decision`, or `no_score:low_coverage`.
`ranked`	Every step as a `DecisionRisk`, highest structural risk first. In a no-score state the scores are `None` and the order is by index.
`keystone`	The worst-blast step, or `None` when the run is not scored.
`per_session`	The keystone's blast share, or `None`.
`coverage`	Dependency-edge coverage: the grade mix, the saturation ratio `rho`, and the observed fraction.
`grounding`	Per step index, the model-basis grounding where a basis is stated.
`completeness`	`complete` for an offline run.
`adapter`	The ingestion adapter id, so the report names the source that produced it.
`notes`	Plain-language honesty notes (covered below).

Each DecisionRisk row carries the step's idx, kind (decision or tool_call), agent, score (or None), a short label, the typed node_attrs, and the grounding for that step when it states a checkable model basis. A corpus tool step states no model basis, so its grounding is None rather than a false zero; grounding lights up on records that carry a decision_basis, such as auditable's own runs.

The No-Score Gates¶

Two gates keep the score honest, and in both the scores are None rather than zero, so a withheld score never reads as no risk.

no_score:single_decision fires when a run has fewer than two steps. A single-decision run has no cross-decision structure to score, so the report degrades to the per-decision signals (the data and grounding signals) rather than inventing structure.

no_score:low_coverage fires when the dependency layer is too sparse, too inferred, or too saturated to score. When the observed fraction is below the threshold, or rho is near 1 (the full-history regime where dependency structure becomes a function of run size and adds nothing beyond the step count), the report withholds the score rather than present run size as risk. An empty dependency layer is low coverage by the same rule.

The Caveats That Travel With the Score¶

The report's own notes carry the honesty caveats, and they should be stated wherever the POST keystone is shown:

Read and write events are observed from the trace, but the corpus write-to-prior-read dependency edges are modeled: a conservative prior-read upper bound over the observed reads, not a causal label.
The structural score is a ranking and triage signal, not calibrated.
In a no-score state, the note states why the score was withheld (single decision, or low coverage), so a gated result still explains itself.
When no step states a checkable model basis, the grounding note says so.

These caveats are part of the report, and they are the honest reading of the signal: a structural triage order over observed events and modeled dependency edges, not a calibrated probability of failure.
